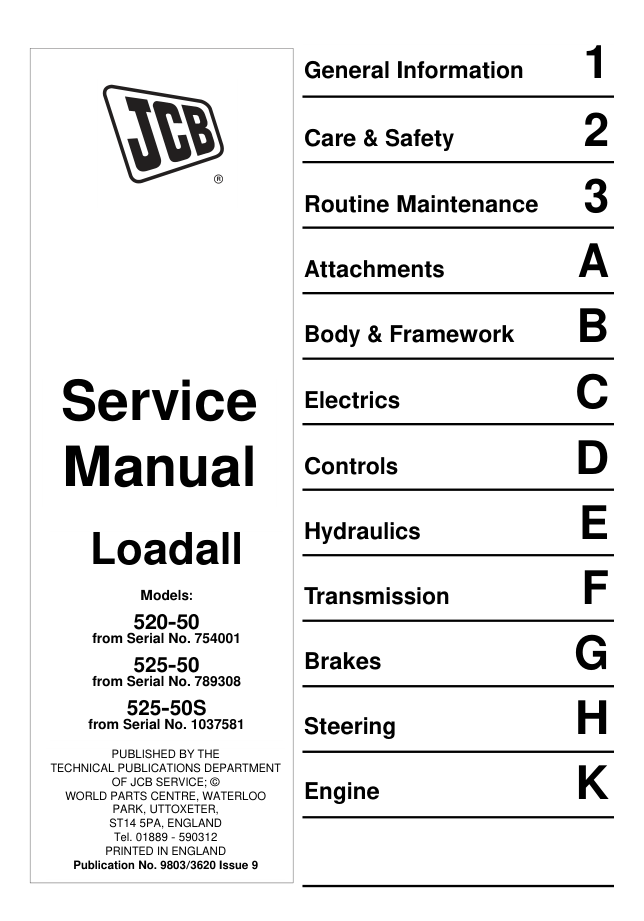

JCB 520-50 525-50 525-50S Service Manual provides detailed workshop, maintenance and repair information for the listed JCB Loadall telescopic handler models. This 280-page digital manual covers the applicable serial-number ranges and carries publication number 9803/3620, Issue 9.
The JCB 520-50 525-50 525-50S Service Manual is intended for service technicians, plant engineers, independent workshops and owners responsible for maintaining these JCB Loadall machines. It contains technical information for routine servicing, fault diagnosis, adjustment, dismantling, inspection, repair and reassembly.
Models and serial numbers covered:
• JCB 520-50 from serial number 754001
• JCB 525-50 from serial number 789308
• JCB 525-50S from serial number 1037581
Manual sections include:
• General Information
• Care and Safety
• Routine Maintenance
• Attachments
• Body and Framework
• Electrics
• Controls
• Hydraulics
• Transmission
• Brakes
• Steering
• Engine
General Information
The general information section provides machine identification details, workshop guidance and technical reference material. It helps technicians understand the machine layout and the procedures required before beginning service or repair work.
Care and Safety
The care and safety section explains important precautions for working on JCB Loadall machines. It includes guidance relating to lifting, machine support, hydraulic pressure, workshop equipment and safe repair practices.
Correct boom support and hydraulic isolation procedures should always be followed before carrying out maintenance beneath or around raised components.
Routine Maintenance
Routine maintenance information supports scheduled servicing and regular machine inspection. Correct maintenance can help improve reliability, reduce premature wear and prevent avoidable breakdowns.
Maintenance procedures may include checking:
• Engine oil and filters
• Hydraulic oil and filters
• Transmission oil
• Cooling system
• Fuel system
• Battery and electrical connections
• Brakes and steering
• Wheels, tyres and axles
• Boom pivots and wear points
• Pins and bushes
• Hydraulic hoses, pipes and fittings
• General fasteners and mountings
Attachments
The attachments section provides service information for compatible equipment fitted to the Loadall. It supports inspection, removal, installation, adjustment and repair of attachments and their mounting components.
Body and Framework
This section covers the cab, body panels, access covers, chassis, boom framework and associated structural components. It provides workshop guidance for removal, inspection, repair and refitting.
Electrics
The electrical section contains information for diagnosing starting, charging, lighting, wiring and electrical component faults.
It may assist with checking:
• Battery and charging circuits
• Starter system
• Wiring and connectors
• Switches and relays
• Fuses
• Lighting equipment
• Electrical controls
• Component operation
Controls
The controls section covers operating levers, pedals, cables, linkages and associated mechanisms. It provides service information for inspection, adjustment, dismantling and repair.
Hydraulics
The hydraulic system operates the boom, carriage, attachments and other machine functions. The JCB 520-50 525-50 525-50S Service Manual can assist when investigating:
• Hydraulic oil leaks
• Weak lifting performance
• Slow boom operation
• Irregular attachment movement
• Hydraulic overheating
• Pump faults
• Control-valve problems
• Cylinder leakage
• Damaged hoses or pipes
Transmission
The transmission section contains service and repair information for the machine drive system. It supports diagnosis, adjustment, dismantling, component inspection and correct reassembly.
This information may help when investigating poor drive, oil leakage, unusual noise, incorrect gear operation or reduced transmission performance.
Brakes
The brake section provides information for inspection, adjustment and repair of the braking system. Correct brake maintenance is essential for safe machine operation.
Steering
The steering section covers the hydraulic and mechanical steering components. It can assist when investigating difficult steering, poor response, excessive movement or hydraulic leakage.
Engine
The engine section provides maintenance, fault diagnosis and repair information for the fitted power unit. It may assist with difficult starting, overheating, loss of power, excessive exhaust smoke or irregular engine operation.
Manual details:
• Manufacturer: JCB
• Machine range: Loadall telescopic handlers
• Models: 520-50, 525-50 and 525-50S
• 520-50 serial numbers: From 754001
• 525-50 serial numbers: From 789308
• 525-50S serial numbers: From 1037581
• Document type: Service and workshop manual
• Publication number: 9803/3620
• Issue: 9
• Number of pages: 280
• Language: English
• Format: Digital PDF manual
• Publisher: JCB Technical Publications Department
• Printed in England
The JCB 520-50 525-50 525-50S Service Manual is a useful technical reference where the original printed workshop manual is missing, damaged or incomplete. It can support scheduled servicing, troubleshooting, component replacement and more extensive repairs.
After purchase, an instruction PDF will be available through your order. The complete manual will then be supplied electronically using a secure Filemail download link, normally within one hour during working hours.
Please confirm that the model, serial-number range and publication number 9803/3620 are suitable for your machine before ordering.
This is a digital PDF manual. No printed book will be posted.
