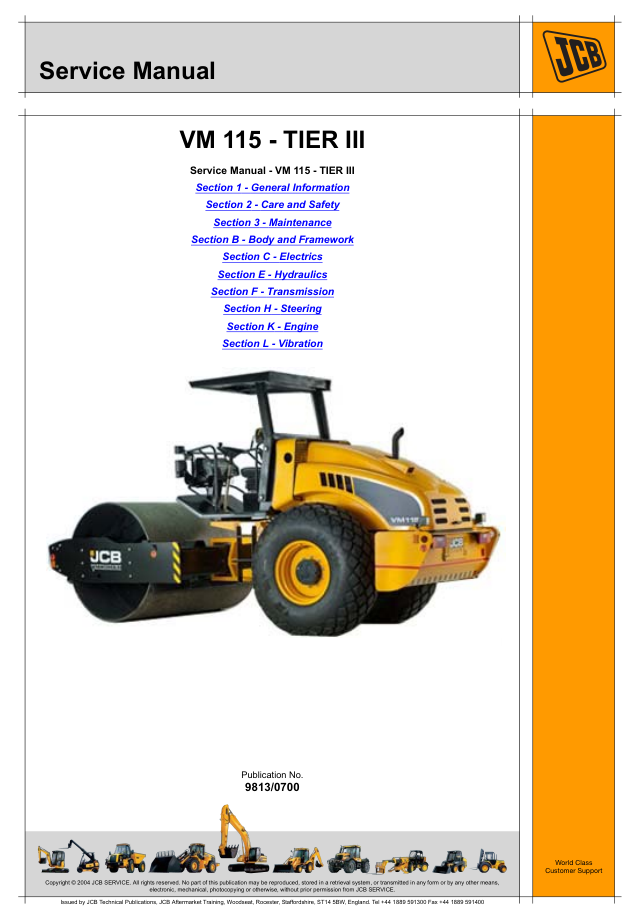

JCB VM115 Tier III Service Manual provides detailed workshop repair, servicing and maintenance information for the JCB VM115 Tier III single-drum compaction roller.
This 300-page service manual contains technical procedures for routine maintenance, fault diagnosis, inspection, adjustment, dismantling, component repair and reassembly. It covers the principal mechanical, hydraulic, electrical and structural systems fitted to the machine.
The JCB VM115 Tier III Service Manual is suitable for machine owners, operators, plant engineers, service technicians and professional workshops. It provides the technical guidance required to identify components, understand system operation and carry out maintenance or repair work using the correct workshop procedures.
Manual contents include:
• General Information
• Care and Safety
• Maintenance
• Body and Framework
• Electrics
• Hydraulics
• Transmission
• Steering
• Engine
• Vibration
The general information section includes machine identification, technical specifications and workshop guidance. The care and safety section explains important precautions that should be followed before beginning maintenance, dismantling or repair work.
Maintenance information covers routine inspections, lubrication and scheduled servicing procedures. Following the correct maintenance instructions can help maintain machine reliability and identify worn or damaged components before they cause more serious problems.
The body and framework section covers the operator area, chassis, access panels, drum supports and associated structural components. It includes procedures for inspection, removal, installation and repair of the principal machine structure.
Electrical information assists with diagnosing wiring, switches, instruments, starting equipment, charging components and other electrical systems. It can help technicians locate faults and test individual components correctly.
The hydraulic section covers pumps, control valves, hoses, motors and related hydraulic components. It provides useful guidance for investigating leaks, poor machine response, weak drive performance and other hydraulic system faults.
Transmission information includes servicing and repair procedures for the machine drive and power-transfer components. Steering coverage explains the steering system and its associated hydraulic and mechanical parts.
The engine section contains maintenance, testing, adjustment, dismantling and repair procedures for the Tier III engine fitted to the JCB VM115.
The vibration section covers the components responsible for drum vibration and compaction performance. This information can assist with diagnosing weak vibration, irregular operation, unusual noise or complete failure of the vibration system.
Manual details:
Model: JCB VM115
Engine specification: Tier III
Machine type: Single-Drum Compaction Roller
Publication number: 9813/0700
Pages: 300
Language: English
Manual type: Service and Workshop Manual
Format: PDF digital manual
The JCB VM115 Tier III Service Manual is a useful workshop reference for planned maintenance, troubleshooting and major repairs. It can help reduce unnecessary dismantling by providing the correct procedures, component information and technical guidance.
This JCB VM115 Tier III Service Manual is particularly useful when working on the body and framework, electrics, hydraulics, transmission, steering, engine or vibration system.
After purchase, an instruction PDF is available through your order. The complete manual will be supplied separately by download link.
