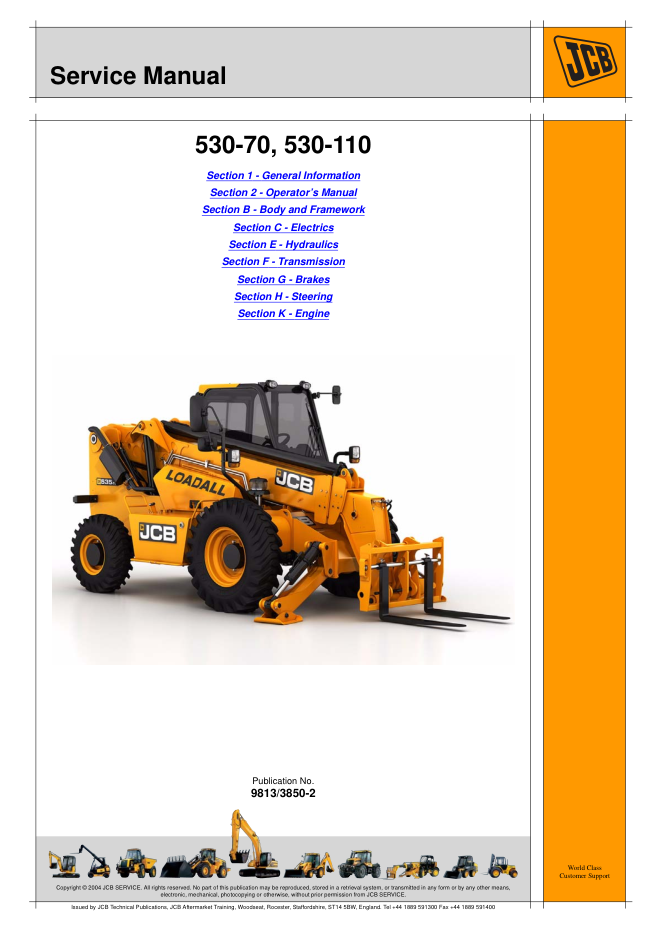

JCB Loadall 530-70 530-110 Service Manual provides detailed workshop repair, servicing and maintenance information for the JCB Loadall 530-70 and 530-110 telescopic handlers.
This 539-page manual covers the main mechanical, hydraulic, electrical and structural systems of both machines. It includes technical information for inspection, diagnosis, adjustment, dismantling, repair and reassembly.
Manual contents include:
• General Information
• Operator’s Manual
• Body and Framework
• Electrics
• Hydraulics
• Transmission
• Brakes
• Steering
• Engine
Manual details:
Models: JCB Loadall 530-70 and 530-110
Machine type: Telescopic Handler
Publication number: 9813/3850-2
Pages: 539
Language: English
Manual type: Service and Workshop Manual
Format: PDF digital manual
The JCB Loadall 530-70 530-110 Service Manual is suitable for owners, engineers, technicians and professional workshops carrying out maintenance and repair work on these machines.
After purchase, an instruction PDF is available through your order. The complete manual will be supplied separately by download link.
