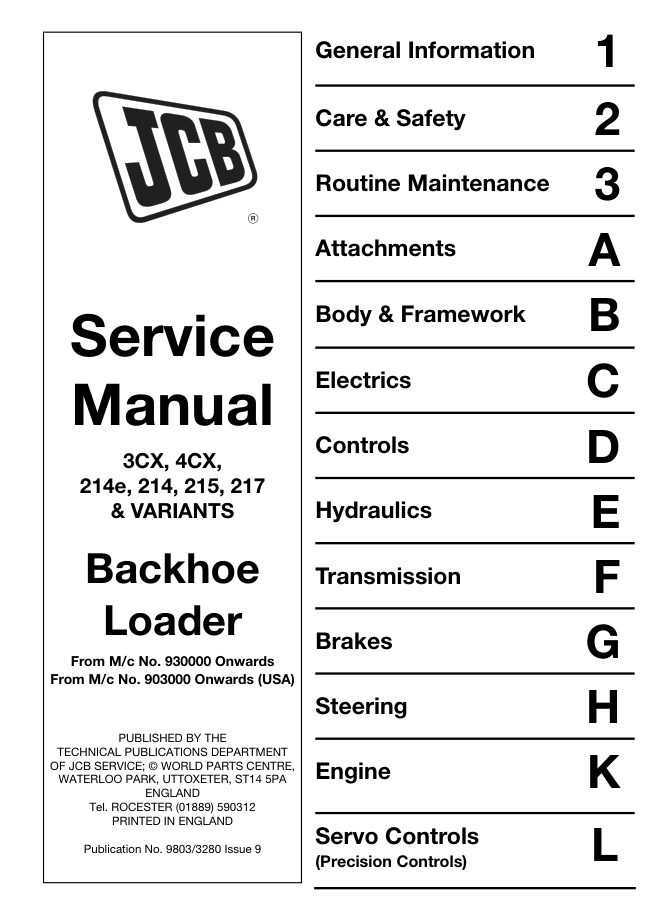

JCB 3CX 4CX Service Manual provides detailed workshop, maintenance and repair information for JCB 3CX, 4CX, 214e, 214, 215 and 217 backhoe loaders and their applicable variants. This 1212-page digital manual covers the listed machine serial-number ranges and carries publication number 9803/3280, Issue 9.
The JCB 3CX 4CX Service Manual is intended for professional technicians, plant engineers, independent workshops and owners responsible for servicing these JCB backhoe loaders. It contains technical guidance for routine maintenance, troubleshooting, adjustment, dismantling, inspection, repair and reassembly.
Models covered:
• JCB 3CX
• JCB 4CX
• JCB 214e
• JCB 214
• JCB 215
• JCB 217
• Applicable variants
Machine serial-number coverage:
• Machine number 930000 onwards
• Machine number 903000 onwards for USA machines
Manual contents include:
• General Information
• Care and Safety
• Routine Maintenance
• Attachments
• Body and Framework
• Electrics
• Controls
• Hydraulics
• Transmission
• Brakes
• Steering
• Engine
• Servo Controls – Precision Controls
General Information
The general information section contains machine identification details, technical data and general workshop guidance. It provides useful information to consult before starting service or repair procedures.
Care and Safety
This section explains important precautions for safely working on JCB backhoe loaders. It includes guidance relating to lifting, supporting the machine, hydraulic pressure, workshop equipment and general repair safety.
Routine Maintenance
Routine maintenance information supports scheduled servicing and regular machine inspection. Correct servicing can help maintain reliable operation, reduce premature wear and prevent avoidable breakdowns.
Maintenance information may include:
• Engine oil and filters
• Hydraulic oil and filters
• Transmission oil
• Cooling system
• Fuel system
• Battery and electrical connections
• Brakes and steering
• Pins, bushes and pivot points
• Hydraulic hoses and fittings
• General fasteners and mountings
Attachments
The attachments section provides technical information for equipment fitted to the loader and backhoe. It supports inspection, removal, installation, adjustment and repair of applicable attachments and mounting components.
Body and Framework
This section covers the cab, panels, access covers, loader framework, backhoe structure and associated components. It provides information for removal, inspection, repair and refitting.
Electrics
The electrical section assists with diagnosing starting, charging, lighting, wiring and electrical component faults. Information may include circuit details, testing procedures, switches, relays, fuses and component locations.
Controls
The controls section covers operating levers, pedals, linkages, cables and associated mechanisms. It provides service information for inspection, adjustment, removal and repair.
Hydraulics
The hydraulic section contains workshop information for the systems operating the loader, backhoe, stabilisers and other machine functions.
The JCB 3CX 4CX Service Manual can help when investigating:
• Hydraulic oil leaks
• Weak digging or lifting performance
• Slow hydraulic operation
• Irregular boom or bucket movement
• Hydraulic overheating
• Pump or control-valve faults
• Cylinder, hose and pipe problems
Transmission
The transmission section provides service and repair guidance for the machine drive system. It supports fault diagnosis, adjustment, dismantling, component inspection and correct reassembly.
Brakes and Steering
Dedicated sections cover inspection, adjustment and repair of the braking and steering systems. Correct maintenance of these systems is essential for safe machine operation.
Engine
The engine section provides maintenance, diagnosis and repair information for the fitted power unit. It may assist with difficult starting, overheating, power loss, excessive smoke or irregular engine operation.
Servo Controls
The servo controls section covers the precision-control system fitted to applicable machines. It provides technical information for inspection, adjustment, troubleshooting and repair of the servo-operated controls.
Manual details:
• Manufacturer: JCB
• Models: 3CX, 4CX, 214e, 214, 215 and 217
• Machine type: Backhoe loader
• Serial numbers: 930000 onwards
• USA serial numbers: 903000 onwards
• Document type: Service and workshop manual
• Publication number: 9803/3280
• Issue: 9
• Number of pages: 1212
• Language: English
• Format: Digital PDF manual
• Publisher: JCB Technical Publications Department
• Printed in England
The JCB 3CX 4CX Service Manual provides a comprehensive workshop reference for servicing, diagnosing and repairing the covered JCB backhoe loaders. It is particularly useful where the original printed manual is missing, damaged or incomplete.
After purchase, an instruction PDF will be available through your order. The complete manual will then be supplied electronically using a secure Filemail download link, normally within one hour during working hours.
Please confirm that the model, serial-number range and publication number 9803/3280 are suitable for your machine before ordering.
This is a digital PDF manual. No printed book will be posted.
