JCB 3CX 4CX 214 215 217 Backhoe Loader Service Manual

JCB 3CX 4CX 214 215 217 Backhoe Loader Service Manual provides detailed workshop, maintenance and repair information for the listed JCB backhoe loader models and their variants. This comprehensive 711-page manual covers several machine serial-number ranges and carries publication numbers 9803/3270 and 9803/3270U.

The JCB 3CX 4CX 214 215 217 Backhoe Loader Service Manual is intended for service technicians, plant engineers, repair workshops and machine owners. It provides technical guidance for routine servicing, fault diagnosis, adjustment, dismantling, inspection, repair and reassembly.

Models covered:

• JCB 3CX
• JCB 4CX
• JCB 214
• JCB 215
• JCB 217
• Applicable model variants

Machine serial-number coverage:

• 460001 to 499999
• 920001 onwards
• 900001 onwards – North American machines only

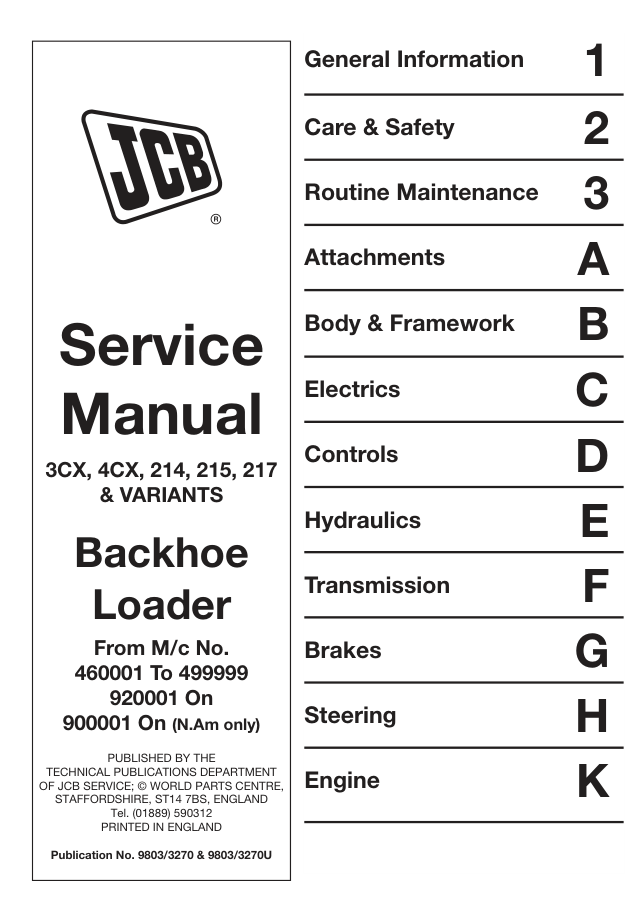

Manual sections include:

• General Information
• Care and Safety
• Routine Maintenance
• Attachments
• Body and Framework
• Electrics
• Controls
• Hydraulics
• Transmission
• Brakes
• Steering
• Engine

General Information

The general information section provides machine identification details, workshop guidance, technical reference information and procedures required before beginning maintenance or repair work.

Care and Safety

The care and safety section explains important precautions for servicing JCB backhoe loaders. It includes guidance on safe lifting, supporting the machine, working around hydraulic systems and avoiding injury during workshop repairs.

Routine Maintenance

Routine maintenance information supports scheduled servicing and regular machine inspection. Correct maintenance can improve reliability, reduce premature wear and help prevent avoidable breakdowns.

Maintenance procedures may include checking:

• Engine oil and filters
• Hydraulic oil and filters
• Transmission fluid
• Cooling system
• Fuel system
• Battery and electrical connections
• Brakes and steering
• Axles and running gear
• Pins, bushes and pivot points
• Hydraulic hoses and fittings

Attachments

The attachments section provides service information for loader and excavator equipment fitted to the machine. It supports inspection, removal, installation, adjustment and repair of compatible attachments and mounting components.

Body and Framework

This section covers the cab, panels, access covers, loader framework, excavator framework and other structural components. It provides guidance for dismantling, inspection and repair.

Electrics

The electrical section assists with diagnosing starting, charging, lighting, wiring and electrical component faults. It may include wiring information, testing procedures, component locations, fuses, relays and switches.

Controls

The controls section covers operating levers, pedals, linkages and related mechanisms. It provides information for inspection, adjustment, dismantling and repair.

Hydraulics

The hydraulic section contains service information for the systems operating the loader, backhoe and associated machine functions.

It can assist when investigating:

• Hydraulic oil leaks
• Weak digging or lifting performance
• Slow hydraulic operation
• Irregular boom or bucket movement
• Hydraulic overheating
• Pump or control-valve faults

Transmission

The transmission section provides workshop guidance for diagnosis, adjustment, dismantling, inspection and repair of the machine drive system.

It can assist when investigating poor drive, unusual noise, oil leakage, incorrect gear operation or reduced transmission performance.

Brakes

The brake section provides information for inspection, adjustment and repair of the braking system. Correct brake maintenance is essential for safe machine operation.

Steering

The steering section covers the steering system and associated hydraulic and mechanical components. It can assist when tracing oil leaks, poor response, excessive movement or difficult steering.

Engine

The engine section provides maintenance, fault diagnosis and repair information for the fitted power unit. It may assist with starting difficulties, overheating, loss of power, excessive smoke or irregular engine operation.

Manual details:

• Manufacturer: JCB
• Models: 3CX, 4CX, 214, 215, 217 and variants
• Machine type: Backhoe loader
• Serial numbers: 460001 to 499999
• Additional serial numbers: 920001 onwards
• North American serial numbers: 900001 onwards
• Document type: Service and workshop manual
• Publication numbers: 9803/3270 and 9803/3270U
• Number of pages: 711
• Language: English
• Format: Digital PDF manual
• Publisher: JCB Technical Publications Department
• Printed in England

The JCB 3CX 4CX 214 215 217 Backhoe Loader Service Manual is a valuable technical reference for routine servicing, troubleshooting, component replacement and major workshop repairs.

After purchase, an instruction PDF will be available through your order. The complete manual will then be supplied electronically using a secure Filemail download link, normally within one hour during working hours.

Please confirm the model, machine serial number and publication number before ordering.

This is a digital PDF manual. No printed book will be posted.
